K30X35X13 - NTN

K30X35X13

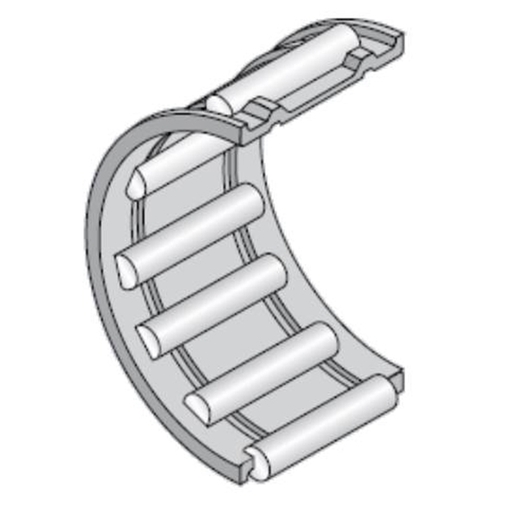

Needle roller bearing, cage assembly, steel cage

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

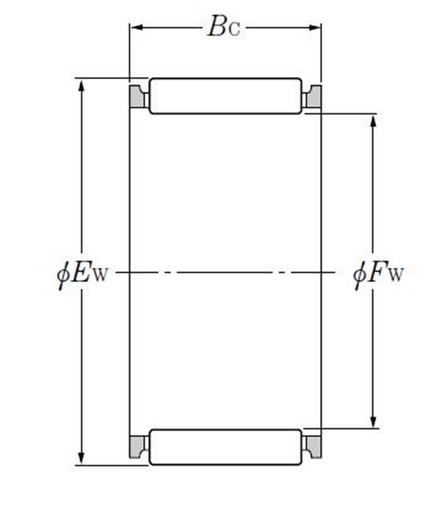

PRODUCT DIMENSIONS

Under rollers diameter (Fw) 30 mm
Upper rollers diameter (Ew) 35 mm
Cage Width (Bc) 13 mm
Mass 0,016 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (Cr) 14,7 kN
Static load rating (C0r) 22,9 kN
Nlim (grease) 8500 tr/min
Nlim (oil) 13000 tr/min
Min operating temperature (Tmin) -20 °C
Max operating temperature (Tmax) 120 °C

ABUTMENT

Raceway width (b) 13 mm
