K30X37X20 - NTN

K30X37X20

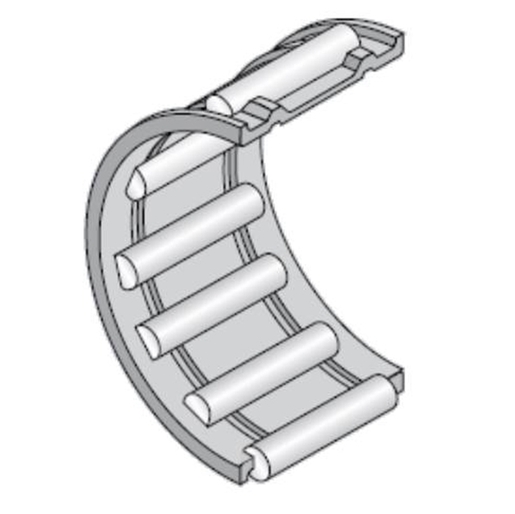

Needle roller bearing, cage assembly, steel cage

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

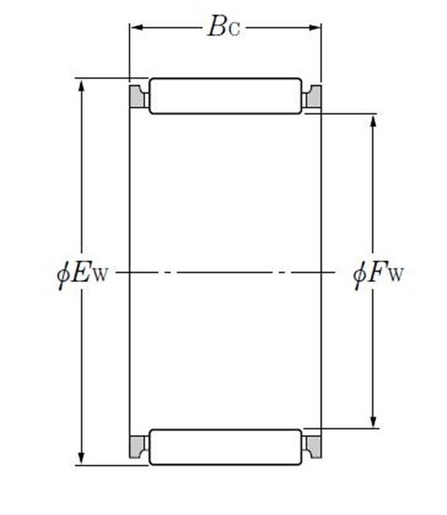

PRODUCT DEFINITION

Fw - Under rollers diameter 30 mm
Ew - Upper rollers diameter 37 mm
Bc - Cage Width 20 mm
Product classification image

TECHNICAL CHARACTERISTICS

Mass 0,038 kg
Brand NTN

PRODUCT PERFORMANCE

Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C

ABUTMENT

b - Raceway width 20 mm
