K65X73X30 - NTN

K65X73X30

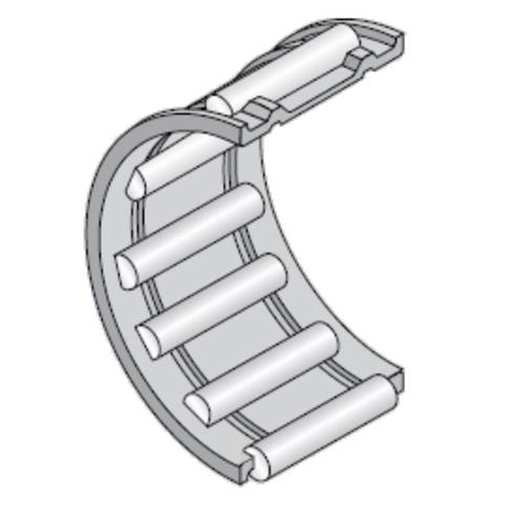

Needle roller bearing, cage assembly, steel cage

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

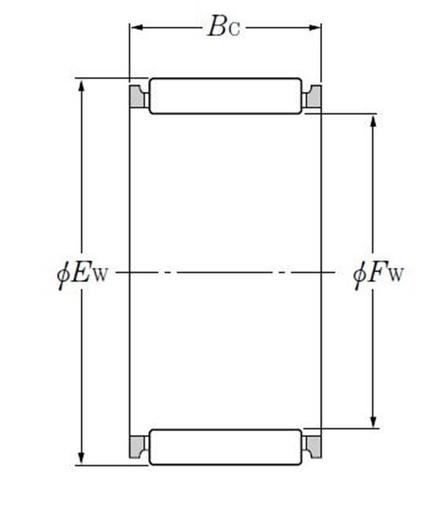

PRODUCT DEFINITION

Fw - Under rollers diameter 65 mm
Ew - Upper rollers diameter 73 mm
Bc - Cage Width 30 mm
Product classification image

TECHNICAL CHARACTERISTICS

Mass 0,126 kg
Brand NTN

PRODUCT PERFORMANCE

Cr - Dynamic load rating 61 kN
C0r - Static load rating 132 kN
Nlim - Grease lubrication limit speed 4000 tr/min
Nlim - Oil lubrication limit speed 6000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C

ABUTMENT

b - Raceway width 30 mm
