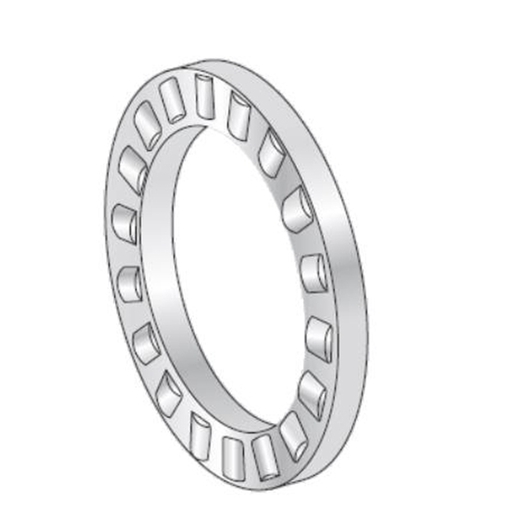

Needle roller bearing, thrust cylindrical roller bearing, cage assembly, K811 series
3D file
Technical datasheet
Specs
PRODUCT DEFINITION | |
|---|---|

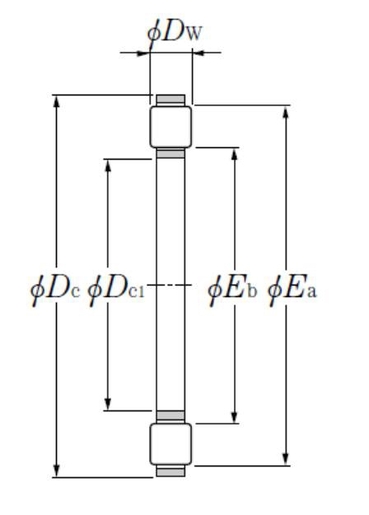

| Dc1 - Roller cage bore diameter | 100 mm |
| Dc - Roller cage outer diameter | 135 mm |
| Bearing ring (inner ring) WS | WS81120 |
| Bearing ring (outer ring) GS | GS81120 |
| Ea - Rollers reference outer diameter | 128,7 mm |
| Eb - Rollers reference inner diameter | 105,1 mm |
| Cage assembly mass | 0,3 kg |
| Brand | NTN |
PRODUCT PERFORMANCE | |
|---|---|
| Ca - Dynamic axial load rating | 158 kN |
| C0a - Static axial load rating | 555 kN |
| Cua - Limit axial load rating | 65 kN |
| Nlim - Grease lubrication limit speed | 500 tr/min |
| Nlim - Oil lubrication limit speed | 2000 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
