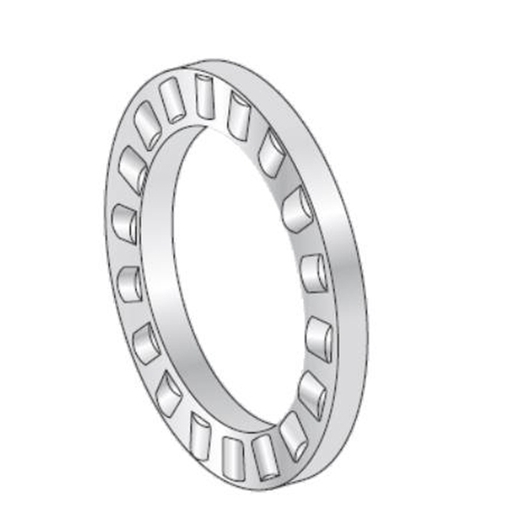

Needle roller bearing, thrust cylindrical roller bearing, cage assembly, K812 series
Log in
To add this product to your basketDocumentation
Product information
| PRODUCT DEFINITION | |
|---|---|
| Brand | NTN |

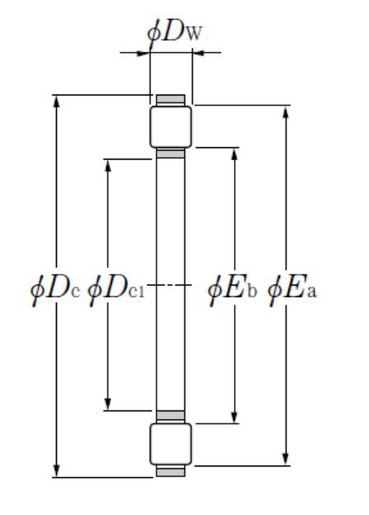

| Dw - Rolling element diameter | 11 mm |
| Dc1 - Roller cage bore diameter | 55 mm |
| Dc - Roller cage outer diameter | 90 mm |
| Bearing ring (inner ring) WS | WS81211 |
| Bearing ring (outer ring) GS | GS81211 |
| Ea - Rollers reference outer diameter | 83,4 mm |
| Eb - Rollers reference inner diameter | 60,1 mm |
| Cage assembly mass | 0,19 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| Ca - Dynamic axial load rating | 121 kN |
| C0a - Static axial load rating | 340 kN |
| Cua - Limit axial load rating | 41,5 kN |
| N lim - Grease lubrication limit speed | 830 tr/min |
| N lim - Oil lubrication limit speed | 3300 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
