K81218J - NTN

K81218J

Needle roller bearing, thrust cylindrical roller bearing, cage assembly, K812 series

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

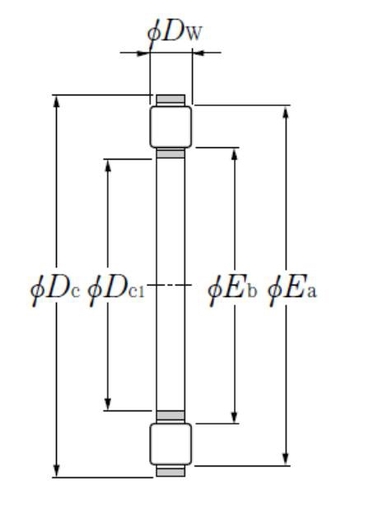

Dc1 - Roller cage bore diameter 90 mm
Dc - Roller cage outer diameter 135 mm
Bearing ring (inner ring) WS WS81218
Bearing ring (outer ring) GS GS81218
Ea - Rollers reference outer diameter 126,7 mm
Eb - Rollers reference inner diameter 97,9 mm
Cage assembly mass 0,54 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Ca - Dynamic axial load rating 213 kN
C0a - Static axial load rating 680 kN
Cua - Limit axial load rating 80 kN
Nlim - Grease lubrication limit speed 530 tr/min
Nlim - Oil lubrication limit speed 2100 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
