Needle roller bearing, thrust cylindrical roller bearing, cage assembly, K893 series
Log in
To add this product to your basketDocumentation
Product information
| PRODUCT DEFINITION | |
|---|---|
| Brand | NTN |

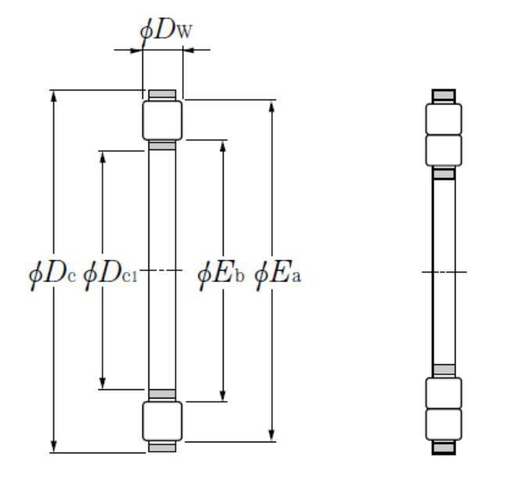

| Dw - Rolling element diameter | 6 mm |
| Dc1 - Roller cage bore diameter | 35 mm |
| Dc - Roller cage outer diameter | 68 mm |
| Bearing ring (inner ring) WS | WS89307 |
| Bearing ring (outer ring) GS | GS89307 |
| Ea - Rollers reference outer diameter | 64,4 mm |
| Eb - Rollers reference inner diameter | 40 mm |
| Cage assembly mass | 0,064 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| Ca - Dynamic axial load rating | 66 kN |
| C0a - Static axial load rating | 214 kN |
| Cua - Limit axial load rating | 26,1 kN |
| N lim - Grease lubrication limit speed | 1200 tr/min |
| N lim - Oil lubrication limit speed | 4600 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
