K89314 - NTN

K89314

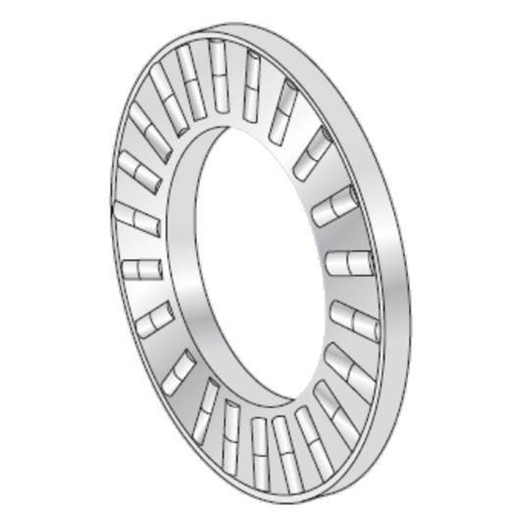

Needle roller bearing, thrust cylindrical roller bearing, cage assembly, K893 series

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

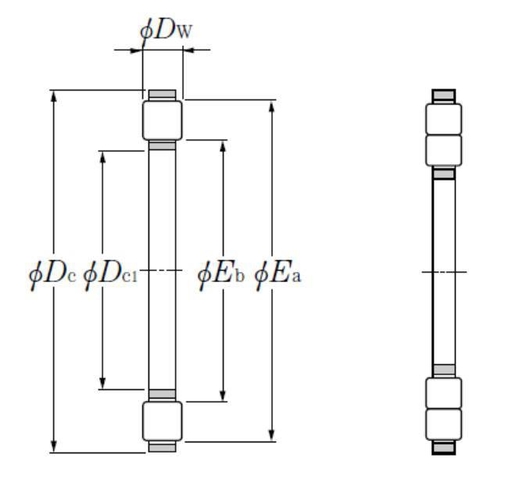

Dc1 - Roller cage bore diameter 70 mm
Dc - Roller cage outer diameter 125 mm
Bearing ring (inner ring) WS WS89314
Bearing ring (outer ring) GS GS89314
Ea - Rollers reference outer diameter 120,2 mm
Eb - Rollers reference inner diameter 79,8 mm
Cage assembly mass 0,34 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Ca - Dynamic axial load rating 205 kN
C0a - Static axial load rating 790 kN
Cua - Limit axial load rating 96,5 kN
Nlim - Grease lubrication limit speed 600 tr/min
Nlim - Oil lubrication limit speed 2400 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
