Brake Disc Hub Kits

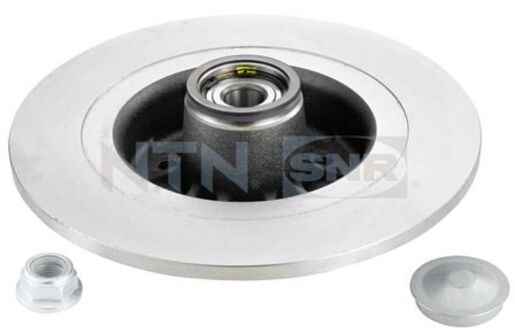

KF155.101U - SNR

KF155.101U
Reference KF155.101U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This kit contains the following reference(s)

  • FC.41288.S04
  • Brake disc
  • Cap
  • Nut
  • Protection cap
  • Encoder
  • Ring

Documentation

Product information

CHARACTERISTICS
With integrated bearing1
Internal diameter n°125 mm
Number of holes5
Tightening torque 1220 N-m
Width 1101 mm
Minimum thickness9 mm
Hole bore14 mm
Epaisseur du disque de frein11 mm
External diameter 3300 mm
Recommended toolClas : OM8154
Bearing typeFC
Disc typePlein
Weight9,29 kg

Automotive Compatibility

BrandModelGenerationDatePositionLocationRenaultMEGANE IIMEGANE II11/2006 => 11/2005RearDroit,GaucheRenaultMEGANE IIMEGANE II11/2006 => 11/2005Train arrièreDroit,GaucheRenaultMEGANE IIMEGANE II11/2006 => 09/2008RearRight,Left
