Brake Disc Hub Kits

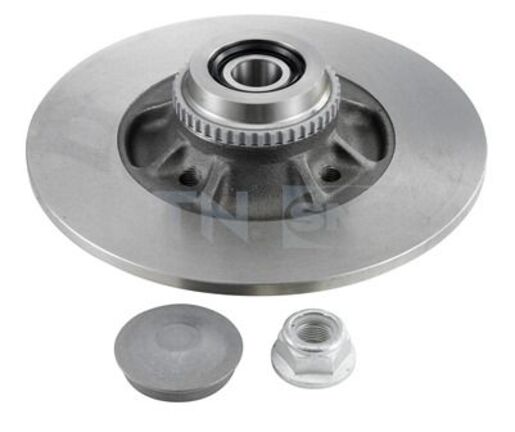

KF155.104U - SNR

KF155.104U
Reference KF155.104U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This product replaces the following reference:
  • KF155.106U - SNR

This kit contains the following reference(s)

  • FC.12784.S03
  • Miscellaneous
  • Nut
  • Brake disc
  • Cap
  • Ring

Documentation

Product information

CHARACTERISTICS
Width 1 (wheel)74 mm
Nb of poles (heavy duty/wheel/cvj)44
Disc typePlein
Internal diameter n°125 mm
Number of holes4
Minimum thickness7 mm
Hole bore12 mm
Tightening torque 1175 N-m
Epaisseur du disque de frein8 mm
External diameter 3237 mm
Recommended toolClas : OM8154
Bearing typeFC
Weight4,77 kg

OE Equivalents

ManufacturerReferenceRenault7701204901DRenault7701208054Renault7703090313

Automotive Compatibility

BrandModelGenerationDatePositionLocationRenault111106/1986 => 06/1989RearLeft,RightRenault1919 => RearRight,LeftRenault191908/1994 => 10/1995RearLeft,RightRenault1919 1 => RearRight,LeftRenault1919 105/1989 => 03/1992RearLeft,RightRenault1919 2 => -Right,LeftRenault1919 2 => RearRight,LeftRenault1919 204/1992 => 10/1995RearLeft,RightRenault55 => RearRight,LeftRenault9906/1986 => 08/1988RearLeft,RightRenaultCLIOCLIO09/1999 => 10/2002RearLeft,RightRenaultCLIOCLIO10/2002 => 10/2002Rear,FrontLeft,RightRenaultCLIOCLIO I => RearLeft,RightRenaultCLIOCLIO I08/1990 => 01/1998RearRight,LeftRenaultCLIO IICLIO II => Rear-RenaultCLIO IICLIO II => RearRight,LeftRenaultCLIO IICLIO II02/1998 => 10/2002RearLeft,RightRenaultCLIO IICLIO II10/2002 => 10/2002Rear,FrontRight,LeftRenaultMEGANEMEGANE => RearRight,LeftRenaultMEGANEMEGANE03/1997 => 01/2003RearLeft,RightRenaultMEGANE IMEGANE I10/1995 => 01/2003RearLeft,RightRenaultMEGANE IMEGANE I02/1999 => RearRight,LeftRenaultSUPER 5SUPER 506/1984 => 07/1990RearLeft,RightRenaultTHALIA SYMBOLTHALIA SYMBOL10/2002 => 10/2002RearLeft,RightRenaultTHALIA SYMBOL THALIA SYMBOLTHALIA SYMBOL THALIA SYMBOL I => RearRight,LeftRenaultTHALIA SYMBOL THALIA SYMBOLTHALIA SYMBOL THALIA SYMBOL I10/2002 => 10/2002RearLeft,Right
