Brake Disc Hub Kits

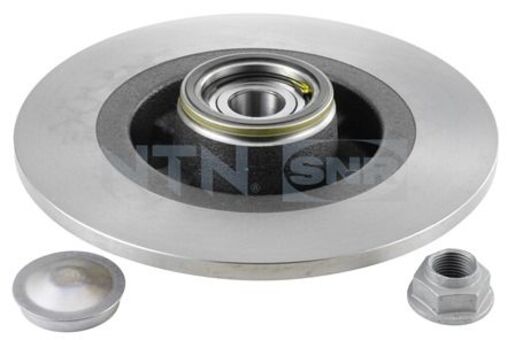

KF155.111U - SNR

KF155.111U
Reference KF155.111U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This kit contains the following reference(s)

  • FC.41722.S01
  • Ring
  • Cap
  • Nut
  • Brake disc
  • Encoder
  • Protection cap

Documentation

Product information

CHARACTERISTICS
With integrated bearing1
Disc typePlein
Internal diameter n°130 mm
Number of holes5
Hole bore12 mm
Tightening torque 1280 N-m
Width 186 mm
Minimum thickness9 mm
Epaisseur du disque de frein11 mm
External diameter 3274 mm
Recommended toolClas : OM8154
Bearing typeFC
Weight8,262 kg

OE Equivalents

ManufacturerReferenceRenault432024048R

Automotive Compatibility

BrandModelGenerationDatePositionLocationRenaultFLUENCEFLUENCE10/2009 => 12/2013RearDroit,GaucheRenaultGRANDGRAND10/2010 => 12/2011RearLeft,RightRenaultSCENICSCENIC III03/2009 => 08/2016RearDroit,GaucheRenaultSCENICSCENIC III03/2009 => 08/2016RearLeft,RightRenaultSCENICSCENIC III03/2009 => 08/2016RearRight,LeftRenaultSCENICSCENIC III03/2009 => 08/2016Train arrièreRight,LeftRenaultSCENICSCENIC III05/2009 => 08/2016Train arrièreDroit,GaucheRenaultSCENICSCENIC III02/2011 => 08/2016RearGauche,DroitRenaultSCENICSCENIC III12/2012 => 08/2016Train arrièreLeft,RightSeatEXEOEXEO12/2011 => 08/2016RearLeft,Right
