Brake Disc Hub Kits

KF155.78U - SNR

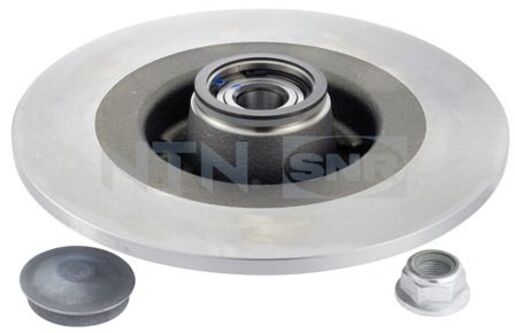

KF155.78U
Reference KF155.78U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This kit contains the following reference(s)

  • FC.41288.S04
  • Brake disc
  • Encoder
  • Nut
  • Cap
  • Protection cap
  • Ring

Documentation

Product information

CHARACTERISTICS
With integrated bearing1
Internal diameter n°125 mm
Number of holes4
Hole bore12 mm
Tightening torque 1220 N-m
Width 182 mm
Epaisseur du disque de frein9 mm
External diameter 3270 mm
Recommended toolClas : OM8154
Bearing typeFC
Disc typePlein
Fitting positionArrière gauche
Weight7,21 kg

Automotive Compatibility

BrandModelGenerationDatePositionLocationRenaultMEGANEMEGANE => Train arrièreLeftRenaultMEGANE IIMEGANE II => Rear-RenaultMEGANE IIMEGANE II08/2003 => 09/2008Train arrièreDroit,GaucheRenaultMEGANE IIMEGANE II08/2003 => 09/2008Train arrièreGauche,DroitRenaultMEGANE IIMEGANE II08/2003 => 09/2008Train arrièreLeft,RightRenaultMEGANE II EstateMEGANE II Estate => RearGaucheRenaultSCENICSCENIC => RearGaucheRenaultSCENICSCENIC04/2003 => 03/2009Train arrièreLeft,RightRenaultSCENICSCENIC II => Rear-RenaultSCENICSCENIC II => Train arrière-RenaultSCENICSCENIC II04/2003 => 08/2006RearLeft,RightRenaultSCENICSCENIC II04/2003 => 10/2009Train arrièreDroit,GaucheRenaultSCENICSCENIC II04/2003 => 10/2009Train arrièreGauche,DroitRenaultSCENICSCENIC II04/2003 => 10/2009Train arrièreLeft,RightRenaultSCENICSCENIC II02/2004 => 10/2009RearDroit,GaucheRenaultSCENICSCENIC II04/2005 => 10/2009Train arrièreRight,Left
