KJ38X44X288X2S - NTN

KJ38X44X288X2S
KJ38X44X288X2S
KJ38X44X288X2S

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

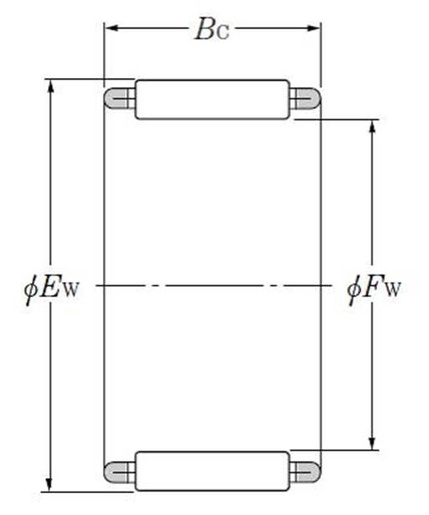

PRODUCT DEFINITION
BrandNTN
Fw - Under rollers diameter38 mm
Ew - Upper rollers diameter44 mm
Bc - Cage Width28,8 mm
Mass0,047 kg
Product classification image
PRODUCT PERFORMANCE
Cr - Dynamic load rating35 kN
C0r - Static load rating66 kN
Nlim - Grease lubrication limit speed7500 tr/min
Nlim - Oil lubrication limit speed11000 tr/min
Tmin - Min operating temperature-20 °C
Tmax - Max operating temperature120 °C
ABUTMENT
b - Raceway width28,8 mm
