M1-162016 - NTN

M1-162016

Needle roller bearing, inner ring, inch dimensions

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

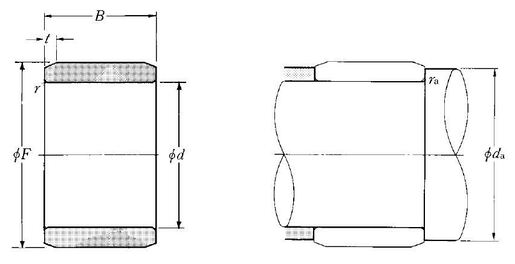

PRODUCT DEFINITION

d - Internal diameter 25,4 mm
B - Bearing/Inner ring width 25,65 mm
F - Under roller diameter 31,75 mm
rs - Min fillet radius 1 mm
Lubrication hole on inner ring No
Precision class P0
Mass 0,052 kg
Brand NTN

ABUTMENT

da min - Min shoulder diameter IR 30,5 mm
ras max - Max shaft & housing fillet radius 1 mm
