MB12 - SNR

MB12

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

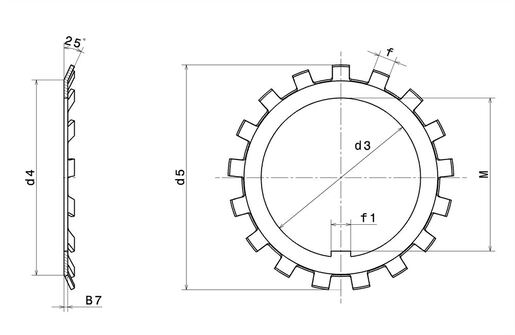

PRODUCT DEFINITION

d3 - Safety washer bore diameter 60 mm
d4 - Tooth root diameter 73 mm
d5 - Outer diameter of the safety washer 86 mm
B7 - Security washer thickness 1,5 mm
M - Distance between inner tab and bore diameter 57,5 mm
f - Width of outer teeth 7 mm
f1 - Inner tab width 8 mm
Product classification image

TECHNICAL CHARACTERISTICS

Designation of the associated nut KM12
Mass 0,026 kg
Brand SNR
