MB28 - SNR

MB28

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR
d3 - Safety washer bore diameter140 mm
d4 - Tooth root diameter160 mm
d5 - Outer diameter of the safety washer192 mm
B7 - Security washer thickness2 mm
M - Distance between inner tab and bore diameter135 mm
f - Width of outer teeth14 mm
f1 - Inner tab width16 mm
Mass0,142 kg

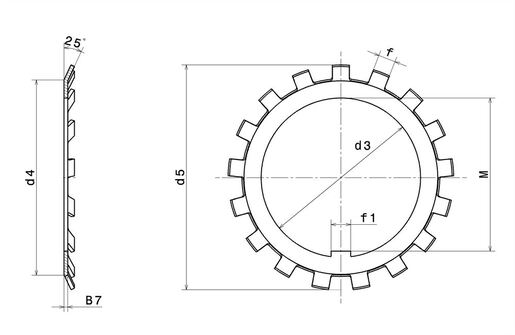

Product classification image
TECHNICAL CHARACTERISTICS
Designation of the associated nutKM28
