NA4903LL/3AS - NTN

NA4903LL/3AS

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

d - Internal diameter 17 mm
D - External diameter 30 mm
B - Bearing/Inner ring width 14 mm
C - Width of bearing, drawn cup or outer ring 13 mm
F - Under roller diameter 22 mm
rs - Min fillet radius 0,3 mm
Lubrication hole on outer ring Yes
k - Hole diameter 2,5 mm
Lubrication hole on inner ring Yes
Radial clearance class CN
Precision class P0
Mass 0,039 kg
Brand NTN

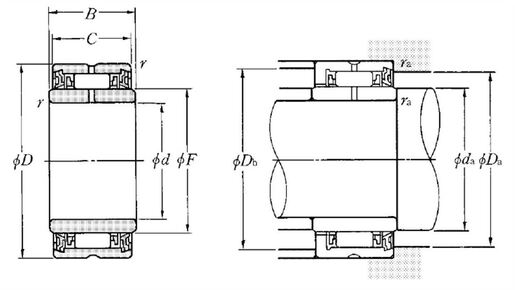

Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 8,5 kN
C0r - Static load rating 11,9 kN
Nlim - Grease lubrication limit speed 9000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C

ABUTMENT

da min - Min shoulder diameter IR 19 mm
Da max - Max shoulder diameter OR 24 mm
Db max - Max OR shoulder diameter 28 mm
ras max - Max shaft & housing fillet radius 0,3 mm
