NA6909R

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

d - Internal diameter 45 mm
D - External diameter 68 mm
C - Width of bearing, drawn cup or outer ring 40 mm
F - Under roller diameter 52 mm
rs - Min fillet radius 0,6 mm
s - Max axial offset 0,5 mm
Lubrication hole on outer ring Yes
k - Hole diameter 3 mm
Lubrication hole on inner ring No
Radial clearance class CN
Precision class P0
Mass 0,437 kg
Brand NTN

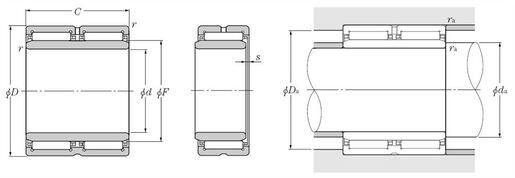

Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 70,5 kN
C0r - Static load rating 127 kN
Nlim - Grease lubrication limit speed 5000 tr/min
Nlim - Oil lubrication limit speed 7500 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C

ABUTMENT

da min - Min shoulder diameter IR 49 mm
Da max - Max shoulder diameter OR 64 mm
ras max - Max shaft & housing fillet radius 0,6 mm
