NATR15LL/3AS - NTN

NATR15LL/3AS

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

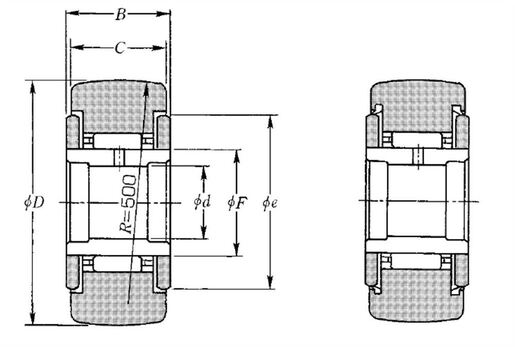

PRODUCT DEFINITION

d - Internal diameter 15 mm
D - External diameter 35 mm
C - Width of bearing, drawn cup or outer ring 18 mm
F - Under roller diameter 20 mm
B - Bearing/Inner ring width 19 mm
e - Inlet diameter of roller or washer 27 mm
R - Track roller radius 500 mm
Bearing with/without cage With
Radial clearance class CN
Precision class P0
Mass 0,098 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 13,3 kN
C0r - Static load rating 20,8 kN
Track load capacity spherical outer ring 3,2 kN
Nlim - Grease lubrication limit speed 7500 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C
