NATR40LL/3AS - NTN

NATR40LL/3AS

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

d - Internal diameter 40 mm
D - External diameter 80 mm
C - Width of bearing, drawn cup or outer ring 30 mm
F - Under roller diameter 50 mm
B - Bearing/Inner ring width 32 mm
e - Inlet diameter of roller or washer 66 mm
R - Track roller radius 500 mm
Bearing with/without cage With
Radial clearance class CN
Precision class P0
Mass 0,875 kg
Brand NTN

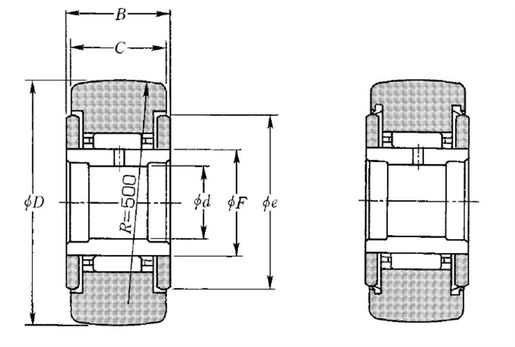

Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 49,5 kN
C0r - Static load rating 92,5 kN
Track load capacity spherical outer ring 9,8 kN
Nlim - Grease lubrication limit speed 3000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C
