NATR45LL/3AS - NTN

NATR45LL/3AS

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

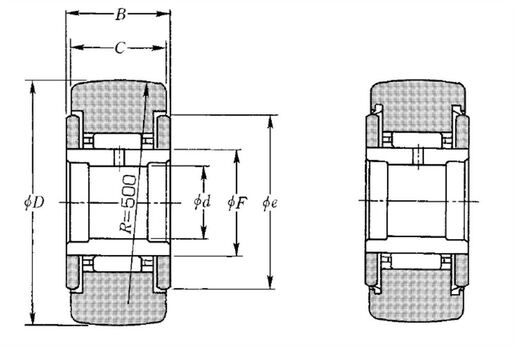

PRODUCT DEFINITION

d - Internal diameter 45 mm
D - External diameter 85 mm
C - Width of bearing, drawn cup or outer ring 30 mm
F - Under roller diameter 55 mm
B - Bearing/Inner ring width 32 mm
e - Inlet diameter of roller or washer 71 mm
R - Track roller radius 500 mm
Bearing with/without cage With
Radial clearance class CN
Precision class P0
Mass 0,91 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 51,5 kN
C0r - Static load rating 100 kN
Track load capacity spherical outer ring 10,4 kN
Nlim - Grease lubrication limit speed 2700 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C
