NATV35LL/3AS - NTN

NATV35LL/3AS

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

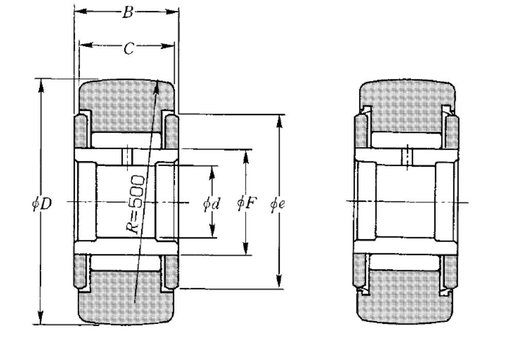

PRODUCT DEFINITION

d - Internal diameter 35 mm
D - External diameter 72 mm
C - Width of bearing, drawn cup or outer ring 28 mm
F - Under roller diameter 44,5 mm
B - Bearing/Inner ring width 29 mm
e - Inlet diameter of roller or washer 58 mm
R - Track roller radius 500 mm
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Mass 0,647 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 52 kN
C0r - Static load rating 134 kN
Track load capacity spherical outer ring 8,05 kN
Nlim - Grease lubrication limit speed 2200 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C
