NK10/16 - NTN

NK10/16

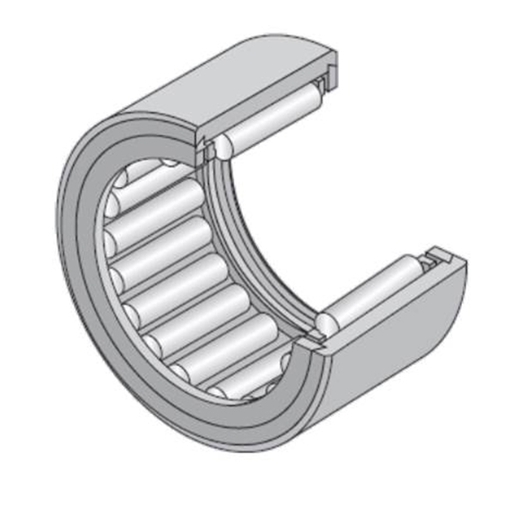

Needle roller bearing, machined-ring, without inner ring, double-side ribs

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

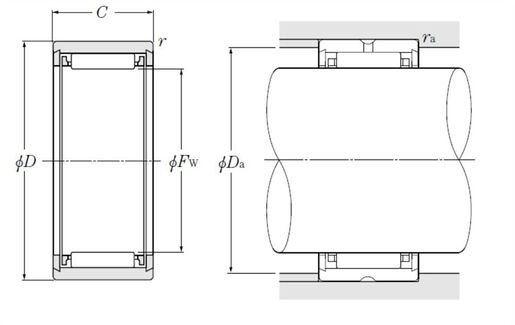

PRODUCT DEFINITION

Fw - Under rollers diameter 10 mm
D - External diameter 17 mm
C - Width of bearing, drawn cup or outer ring 16 mm
rs - Min fillet radius 0,3 mm
Lubrication hole on outer ring No
Radial clearance class CN
Precision class P0
Mass 0,013 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 5,45 kN
C0r - Static load rating 6,45 kN
Nlim - Grease lubrication limit speed 19000 tr/min
Nlim - Oil lubrication limit speed 28000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C

ABUTMENT

Da max - Max shoulder diameter OR 11,5 mm
ras max - Max shaft & housing fillet radius 0,3 mm
