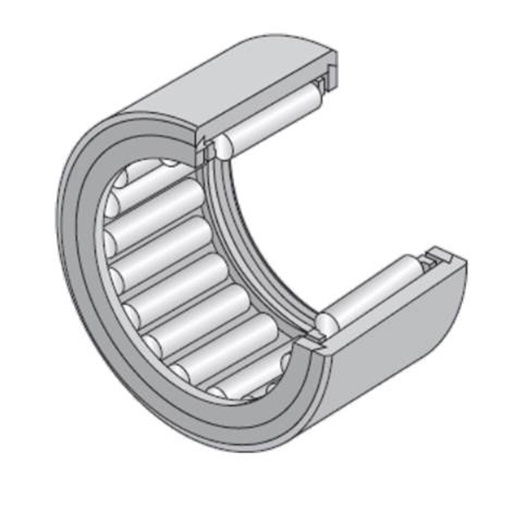

Needle roller bearing, machined-ring, without inner ring, double-side ribs
3D file
Technical datasheet

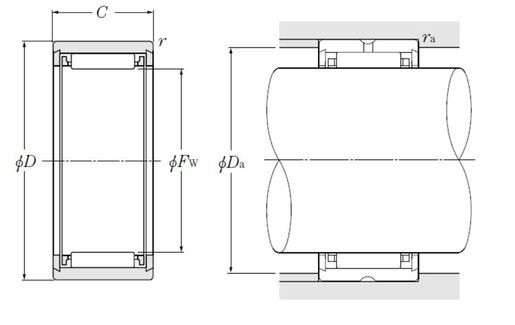

| PRODUCT DEFINITION | |
|---|---|
| Brand | NTN |
| Fw - Under rollers diameter | 5 mm |
| D - External diameter | 10 mm |
| C - Width of bearing, drawn cup or outer ring | 10 mm |
| rs - Min fillet radius | 0,15 mm |
| Lubrication hole on outer ring | Yes |
| k - Hole diameter | 2 mm |
| Radial clearance class | CN |
| Precision class | P0 |
| Mass | 0,003 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| Cr - Dynamic load rating | 2,64 kN |
| C0r - Static load rating | 2,19 kN |
| Nlim - Grease lubrication limit speed | 27000 tr/min |
| Nlim - Oil lubrication limit speed | 40000 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 100 °C |
| ABUTMENT | |
|---|---|
| Da max - Max shoulder diameter OR | 6,5 mm |
| ras max - Max shaft & housing fillet radius | 0,15 mm |
