NK6/12T2 - NTN

NK6/12T2

Needle roller bearing, machined-ring, without inner ring, double-side ribs

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

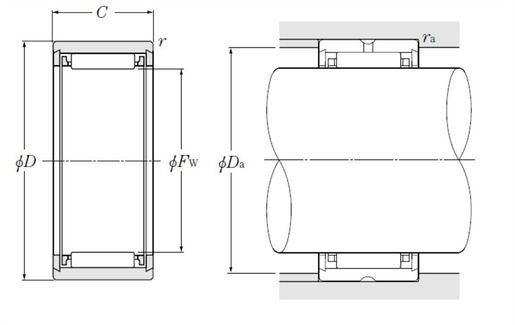

PRODUCT DEFINITION

Fw - Under rollers diameter 6 mm
D - External diameter 12 mm
C - Width of bearing, drawn cup or outer ring 12 mm
rs - Min fillet radius 0,15 mm
Lubrication hole on outer ring Yes
k - Hole diameter 2 mm
Radial clearance class CN
Precision class P0
Mass 0,006 kg
Brand NTN

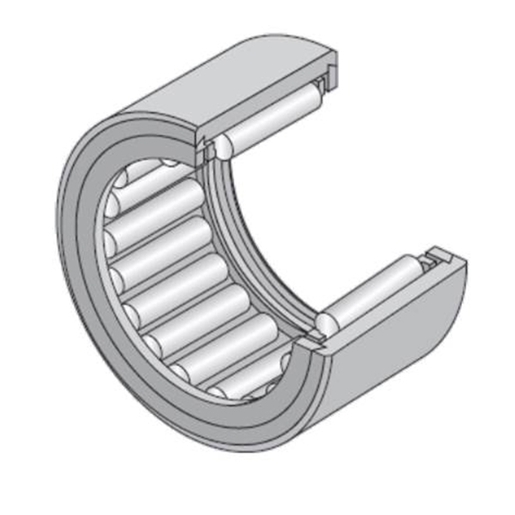

Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 3,4 kN
C0r - Static load rating 3,15 kN
Nlim - Grease lubrication limit speed 25000 tr/min
Nlim - Oil lubrication limit speed 37000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C

ABUTMENT

Da max - Max shoulder diameter OR 7,5 mm
ras max - Max shaft & housing fillet radius 0,15 mm
