NUTR204/3AS - NTN

NUTR204/3AS

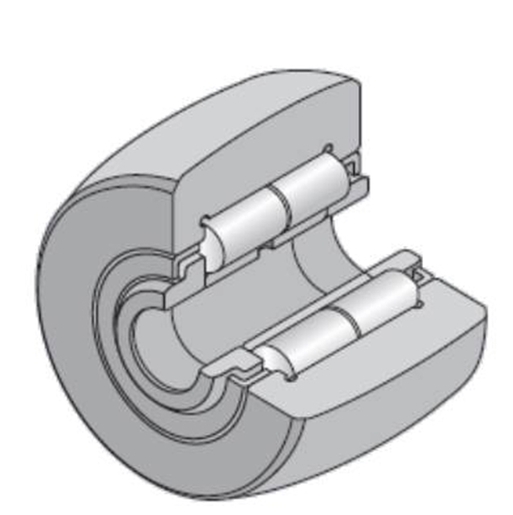

Needle roller bearing, roller follower, full-complement cylindrical roller, with inner ring, double-side shields, spherical outer ring

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

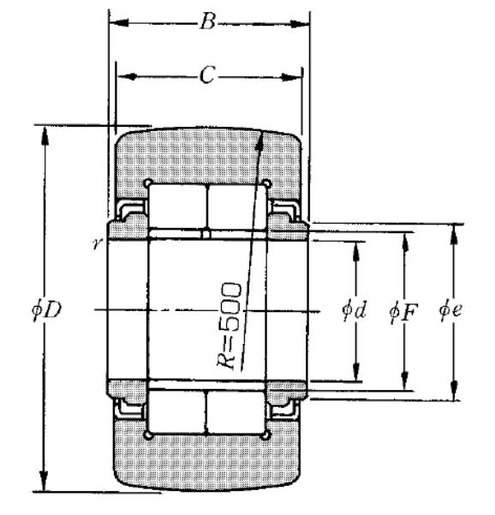

PRODUCT DEFINITION
BrandNTN
d - Internal diameter20 mm
D - External diameter47 mm
C - Width of bearing, drawn cup or outer ring24 mm
F - Under roller diameter25,5 mm
B - Bearing/Inner ring width25 mm
e - Inlet diameter of roller or washer27 mm
R - Track roller radius500 mm
rs - Min fillet radius0,3 mm
Bearing with/without cageWithout
Radial clearance classCN
Precision classP0
Mass0,245 kg
Product classification image
PRODUCT PERFORMANCE
Cr - Dynamic load rating38,5 kN
C0r - Static load rating48 kN
Track load capacity spherical outer ring4,7 kN
Nlim - Grease lubrication limit speed4000 tr/min
Tmin - Min operating temperature-20 °C
Tmax - Max operating temperature120 °C
