RNAB204 - NTN

RNAB204

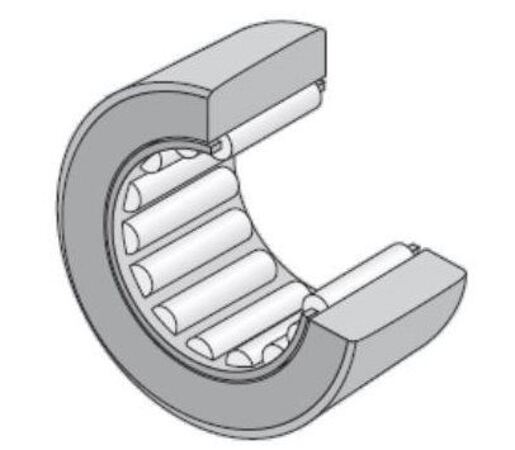

Needle roller bearing, roller follower, with cage, separable, without inner ring, spherical outer ring

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

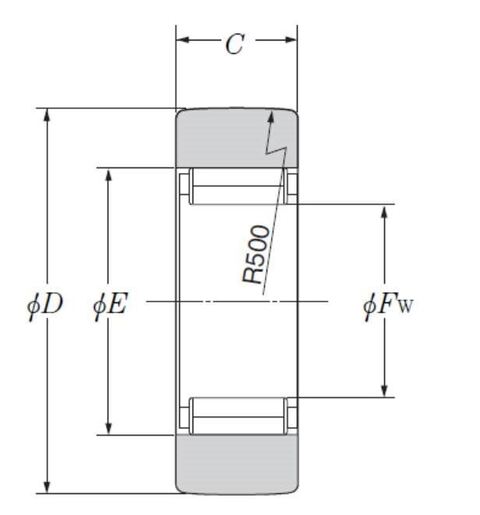

PRODUCT DEFINITION

D - External diameter 47 mm
Fw - Under rollers diameter 25 mm
C - Width of bearing, drawn cup or outer ring 15,8 mm
E - Upper roller diameter 32 mm
R - Track roller radius 500 mm
Bearing with/without cage With
Precision class P0
Mass 0,13 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 20,3 kN
C0r - Static load rating 25,9 kN
Track load capacity spherical outer ring 4,76 kN
Nlim - Grease lubrication limit speed 6000 tr/min
Nlim - Oil lubrication limit speed 8000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
