S63002RS - SNR

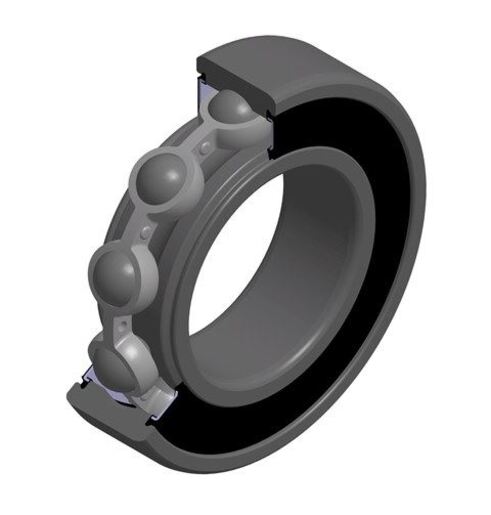

Stainless deep groove ball bearing, radial contact, Stainless pressed steel cage, contact seals on both sides

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.


CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us


Internal diameter (d) 10 mm
External diameter (D) 35 mm
Bearing/Inner ring width (B) 11 mm
External diameter inner ring d1 18 mm
Inner diameter outer ring (D1) 29,5 mm
Min fillet radius (rs) 0,6 mm
Radial clearance class CN
Mass 0,053 kg
Brand SNR
Product classification image


Dynamic load (C) 8,1 kN
Static load (C0) 3,45 kN
Fatigue limit load (Cu) 0,16 kN
Coefficient f0 11.2
Mechanical Limit Speed (Nlim) 16000 tr/min
Min operating temperature (Tmin) -20 °C
Max operating temperature (Tmax) 120 °C

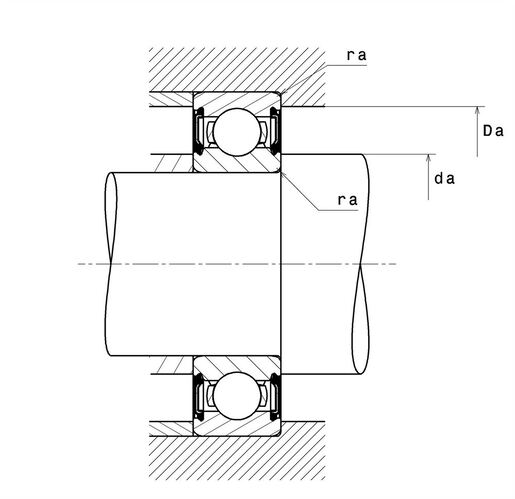

Min shoulder diameter IR (da min) 14 mm
Max shoulder diameter IR (da max) 18 mm
Max shoulder diameter OR (Da max) 31 mm
Max shaft & housing fillet radius (ra max) 0,6 mm
