SNC315

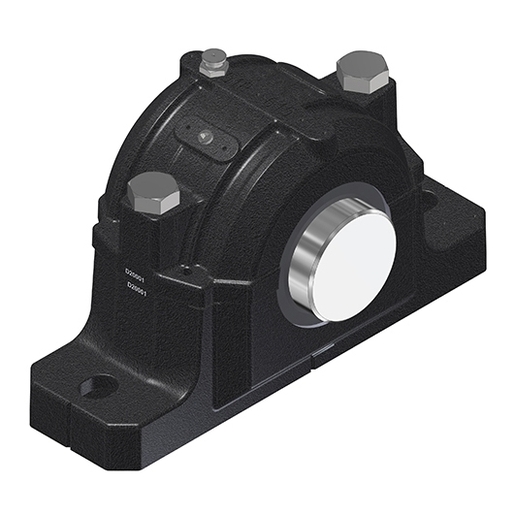

Split plummer block for bearings with cylindrical bore, made of grey cast, for grease lubrication

Split SN-bearing housings made of ductile- or grey cast iron with several sealing options.

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

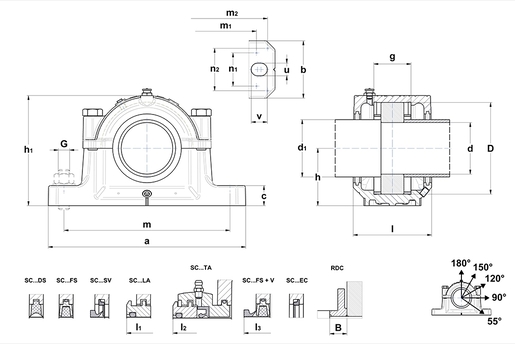

PRODUCT DEFINITION

d - Shaft diameter 75 mm
d1 - Shaft diameter outlet large 85 mm
a - Housing length 345 mm
b - Housing foot width 100 mm
c - Housing foot height 35 mm
g - Bearing seat width 65 mm
h - Bearing center height 100 mm
h1 - Housing height 192 mm
l - Housing mid width 140 mm
l1 - Width over TS 157 mm
l2 - Width over TA 217 mm
l3 - Width over V-ring 167
m - Mounting hole/punches distance (length) 290 mm
m1 - Distance punches (additional holes) 280 mm
n1 - Distance punches for additional holes (width) 58 mm
m2 - Distance punches (dowel pins) 319 mm
n2 - Distance punches for dowel pins (width) 74 mm
u - Mounting hole (width) 22 mm
v - Mounting hole (length) 28 mm
D - Bearing seat diameter 160 mm
B - Width RDC 15 mm
Initial grease quantity 650 cm³
Diameter dowel pins 6 mm
m3 - Distance blind hole bottom pins 227 mm
Brand SNR
Product classification image

SEALINGS AND COVER

Sealing DS SC 215 DS
Sealing LA SC 215 LA
Sealing FS SC 215 FS
Sealing TA SC 215 TA
Sealing SV SC 215 SV
end cover EC SC518-615EC
V-ring option V85A

BOLTS

G - Fixing bolts M20
Recommended torque fixing bolts 290 N-m
Connection bolts M20x90
Recommended torque connection bolts 290 N-m
Maximum loads 120° 260 kN
Maximum loads 150° 150 kN
Maximum loads 180° 130 kN

BREAKING LOADS

Breaking loads P 0° 670 kN
Breaking loads P 55° 550 kN
Breaking loads P 90° 340 kN
Breaking loads P 120° 250 kN
Breaking loads P 150° 220 kN
Breaking loads P 180° 285 kN

ASSOCIATED COMPONENTS - GENERAL

Designation of housing SNC518-615-
Regulation disc RDC315

ASSOCIATED COMPONENTS - OPTION 1

Bearing 1315
Fixing ring (x2) FR160x14x5

ASSOCIATED COMPONENTS - OPTION 2

Bearing 2315
Fixing ring (x2) FR160x5x6

ASSOCIATED COMPONENTS - OPTION 3

Bearing 21315
Fixing ring (x2) FR160x14x5

ASSOCIATED COMPONENTS - OPTION 4

Bearing 22315
Fixing ring (x2) FR160x5x6
