UC312G2 - SNR

UC312G2

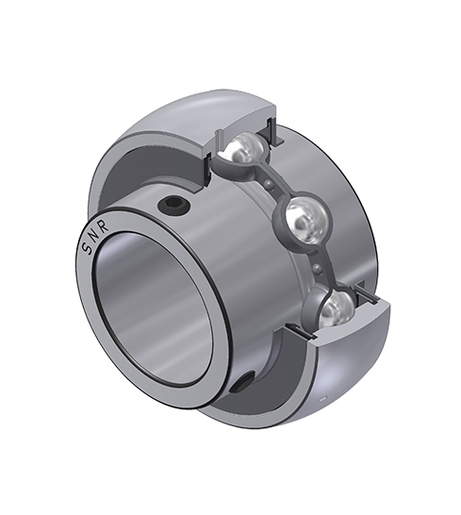

Spherical outer diameter, fixing by socket set screw, seal with slinger

Bearing inserts for bearing units, are proposed with different locking devices for easy assembly.

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

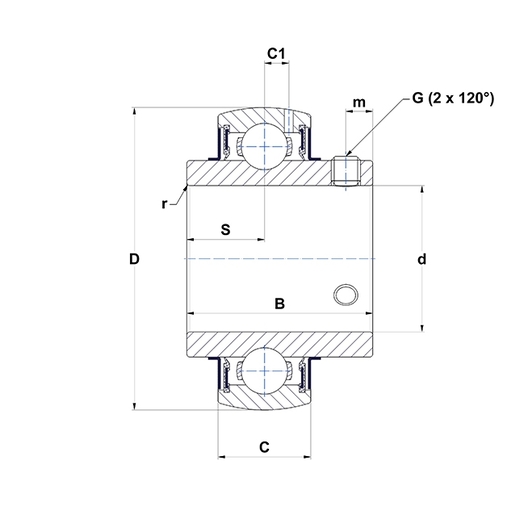

PRODUCT DEFINITION

B - Width of Inner Ring 71 mm
C - Width of Outer Ring 36 mm
C1 - Distance center of OR to center of lubrication zone 11,3 mm
d - Shaft diameter 60 mm
D - Outer diameter of OR 130 mm
G - Set screw size M12x1,25
m - Distance to set screw 12 mm
r - Radius Inner Ring 2
S - Dist. cent. of raceway to face IR on side opp. lock. device 26 mm
SW - Wrench size 6 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 81,6 kN
C0 - Static load rating 51,8 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 2,6 kg
Recommended tightening torque for set screw 33 N-m
