UCF206-20CC - SNR

UCF206-20CC

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger.

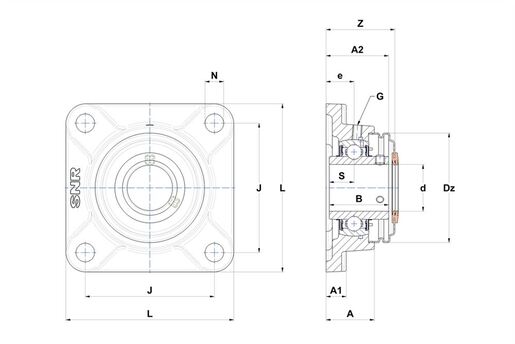

In the figure, flanged bearing units are presented with open cover. The product you have chosen is equipped with closed cover.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC206-20G2 - SCC206 - F206N
PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

A - Housing height 31 mm
A1 - Housing foot height / flange height 13 mm
A2 - Total height from mounting surface 40,2 mm
B - Width of Inner Ring 38,1 mm
d - Shaft diameter 31,75 mm
Dz - Outer diameter of cover 70 mm
e - Distance mounting surface to bearing center 18 mm
G - Grease fitting M6x1
J - Mounting holes distance 83 mm
L - Housing width / diameter 108 mm
N - Mounting hole dimension 12 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 15,9 mm
Z - Width over covers 44,2 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 19,5 kN
C0 - Static load rating 11,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,13 kg
Recommended tightening torque for set screw 3,7 N-m
