Grey cast housing, radial insert ball bearing with socket set screws,triple lip seal
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
Technical datasheet
Specs

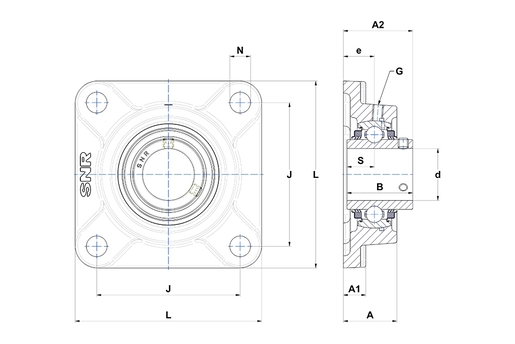

PRODUCT DIMENSIONS | |
|---|---|
| Housing height (A) | 34 mm |
| Housing foot height / flange height (A1) | 15 mm |
| Total height (Housing + Insert) from mouting surface (A2) | 44,4 mm |
| Width of IR (B) | 42,9 mm |
| Shaft dia (d) | 33,338 mm |
| Distance mounting surface - bearing center (e) | 19 mm |
| Grease fitting (G) | M6x1 |
| Mounting hole distance (J) | 92 mm |
| Housing width / dia (L) | 117 mm |
| Mounting hole dimension (N) | 14 mm |
| Dist. cent. of raceway to face IR on side opp. lock. device (S) | 17,5 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (C) | 25,7 kN |
| Static load rating (C0) | 15,2 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
OTHER FEATURES | |
|---|---|
| Mass | 1,54 kg |
| Recommended tightening torque for set screw [Nm] | 8 N-m |
