UCF207-22T04CO - SNR

UCF207-22T04CO

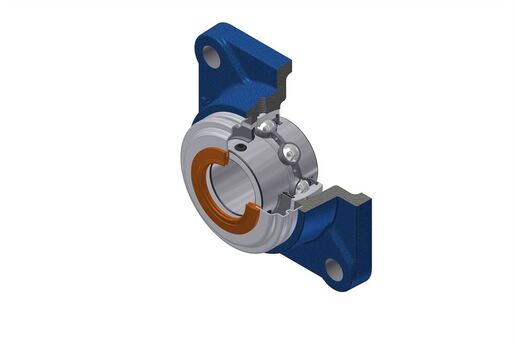

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC207-22G2T04 - SCOU207-22 - F207N
PLEASE LOGIN to add products to your basket
Contact us

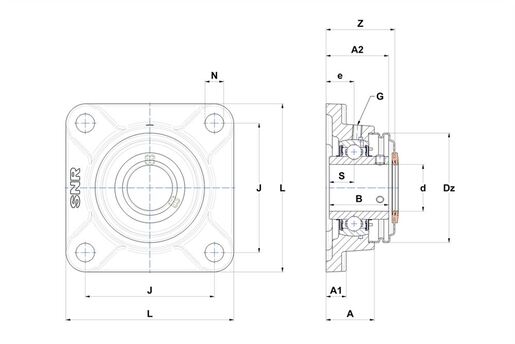

PRODUCT DEFINITION
BrandSNR
A - Housing height34 mm
A1 - Housing foot height / flange height15 mm
A2 - Total height from mounting surface44,4 mm
B - Width of Inner Ring42,9 mm
d - Shaft diameter34,925 mm
Dz - Outer diameter of cover80 mm
e - Distance mounting surface to bearing center19 mm
G - Grease fittingM6x1
J - Mounting holes distance92 mm
L - Housing width / diameter117 mm
N - Mounting hole dimension14 mm
S - Distance front side/bearing centre17,5 mm
Z - Width over covers48,3 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating25,7 kN
C0 - Static load rating15,2 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass1,547 kg
Recommended tightening torque for set screw8 N-m
