UCF208-24CC - SNR

UCF208-24CC

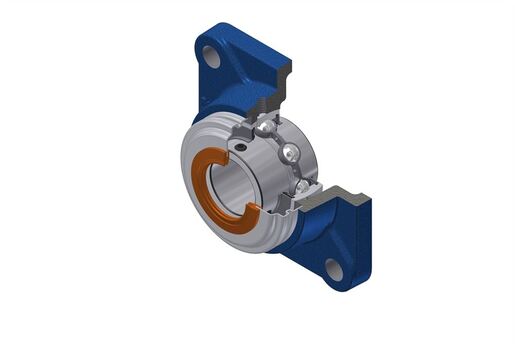

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Descargas

Ficha técnica

KitEste kit contiene la(s) siguiente(s) referencia(s) - UC208-24G2 - SCC208 - F208N
POR FAVOR REGÍSTRESE para añadir productos a su cesta
Contact us
Espec.

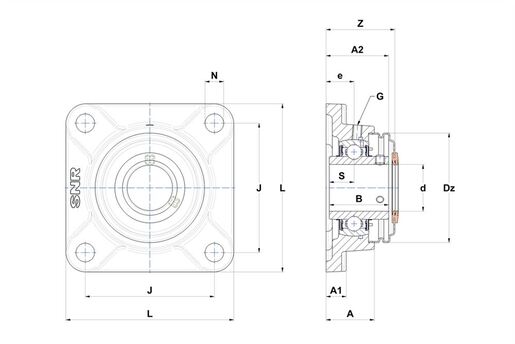

PRODUCT DIMENSIONS

Housing height (A) 36 mm
Housing foot height / flange height (A1) 15 mm
Total height (Housing + Insert) from mouting surface (A2) 51,2 mm
Width of IR (B) 49,2 mm
Shaft dia (d) 38,1 mm
Outer dia of cover (Dz) 88 mm
Distance mounting surface - bearing center (e) 21 mm
Grease fitting (G) M6x1
Mounting hole distance (J) 102 mm
Housing width / dia (L) 130 mm
Mounting hole dimension (N) 16 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 19 mm
width over covers 54,9 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 29,6 kN
Static load rating (C0) 18,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,988 kg
Recommended tightening torque for set screw [Nm] 8 N-m
