UCF208-24T04CO - SNR

UCF208-24T04CO

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC208-24G2T04 - SCOU208-24 - F208N
PLEASE LOGIN to add products to your basket
Contact us
Specs

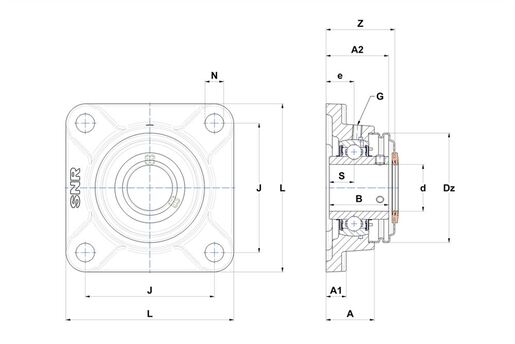

PRODUCT DEFINITION

A - Housing height 36 mm
A1 - Housing foot height / flange height 15 mm
A2 - Total height from mounting surface 51,2 mm
B - Width of Inner Ring 49,2 mm
d - Shaft diameter 38,1 mm
Dz - Outer diameter of cover 88 mm
e - Distance mounting surface to bearing center 21 mm
G - Grease fitting M6x1
J - Mounting holes distance 102 mm
L - Housing width / diameter 130 mm
N - Mounting hole dimension 16 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 19 mm
Z - Width over covers 54,9 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 29,6 kN
C0 - Static load rating 18,2 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,982 kg
Recommended tightening torque for set screw 8 N-m
