UCF208CC - SNR

UCF208CC

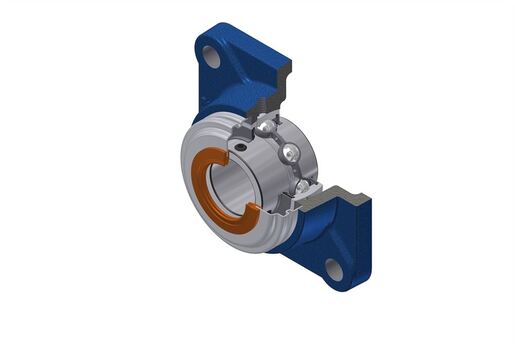

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger.

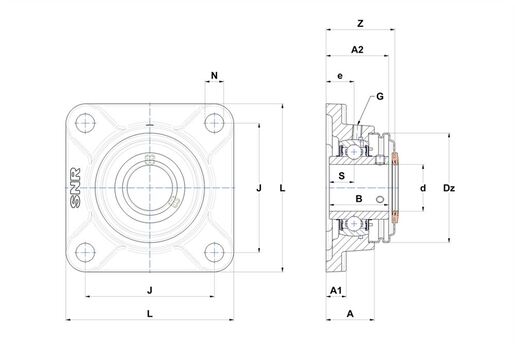

In the figure, flanged bearing units are presented with open cover. The product you have chosen is equipped with closed cover.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

3D file

Technical datasheet

KitThis kit contains the following reference(s) - UC208G2 - SCC208 - F208N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR
A - Housing height36 mm
A1 - Housing foot height / flange height15 mm
A2 - Total height from mounting surface51,2 mm
B - Width of Inner Ring49,2 mm
d - Shaft diameter40 mm
Dz - Outer diameter of cover88 mm
e - Distance mounting surface to bearing center21 mm
G - Grease fittingM6x1
J - Mounting holes distance102 mm
L - Housing width / diameter130 mm
N - Mounting hole dimension16 mm
S - Distance front side/bearing centre19 mm
Z - Width over covers54,9 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating29,6 kN
C0 - Static load rating18,2 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass1,948 kg
Recommended tightening torque for set screw11,5 N-m
