UCF209-26NL3 - SNR

UCF209-26NL3

Grey cast housing, radial insert ball bearing with socket set screws,triple lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC209-26G2L3 - F209N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

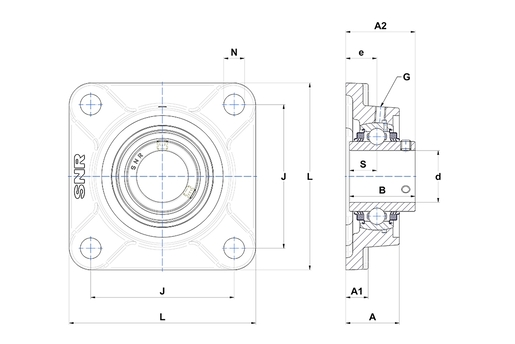

A - Housing height38 mm
A1 - Housing foot height / flange height16 mm
A2 - Total height from mounting surface52,2 mm
B - Width of Inner Ring49,2 mm
d - Shaft diameter41,275 mm
e - Distance mounting surface to bearing center22 mm
G - Grease fittingM6x1
J - Mounting holes distance105 mm
L - Housing width / diameter137 mm
N - Mounting hole dimension16 mm
S - Distance front side/bearing centre19 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating31,85 kN
C0 - Static load rating20,8 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass2,19 kg
Recommended tightening torque for set screw8 N-m
