Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger.

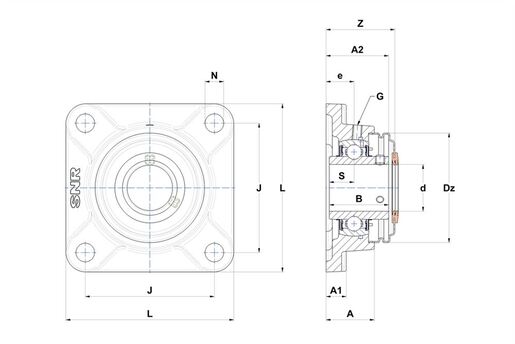

In the figure, flanged bearing units are presented with open cover. The product you have chosen is equipped with closed cover.
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
|A - Housing height||40 mm|
|A1 - Housing foot height / flange height||16 mm|
|A2 - Total height from mounting surface||54,6 mm|
|B - Width of Inner Ring||51,6 mm|
|d - Shaft diameter||49,213 mm|
|Dz - Outer diameter of cover||100 mm|
|e - Distance mounting surface to bearing center||22 mm|
|G - Grease fitting||M6x1|
|J - Mounting holes distance||111 mm|
|L - Housing width / diameter||143 mm|
|N - Mounting hole dimension||16 mm|
|S - Dist. cent. of raceway to face IR on side opp. lock. device||19 mm|
|Z - Width over covers||59,3 mm|
|C - Dynamic load rating||35,1 kN|
|C0 - Static load rating||23,2 kN|
|Operating temperature min.||-20 °C|
|Operating temperature max.||100 °C|
|Recommended tightening torque for set screw||16,8 N-m|
