UCFE206-18T20CC - SNR

UCFE206-18T20CC

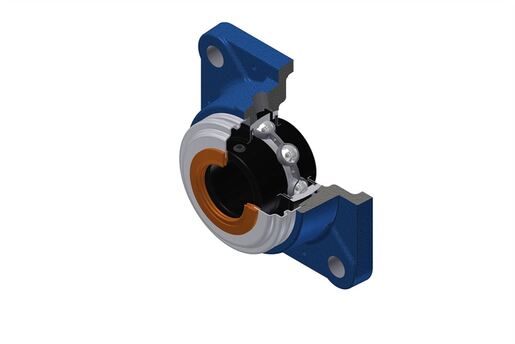

Grey cast housing, radial insert ball bearing with socket set screws,labyrinth seal, for high-temp. applications.

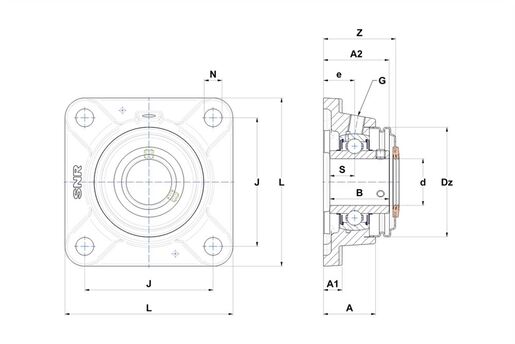

In the figure, flanged bearing units are presented with open cover. The product you have chosen is equipped with closed cover.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC206-18G2T20 - SCC206 - FE206N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR
A - Housing height33,5 mm
A1 - Housing foot height / flange height12 mm
A2 - Total height from mounting surface42,2 mm
B - Width of Inner Ring38,1 mm
d - Shaft diameter28,575 mm
Dz - Outer diameter of cover70 mm
e - Distance mounting surface to bearing center20 mm
G - Grease fittingR1/8"
J - Mounting holes distance82,5 mm
L - Housing width / diameter108 mm
N - Mounting hole dimension11,5 mm
S - Distance front side/bearing centre15,9 mm
Z - Width over covers46,4 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating19,5 kN
C0 - Static load rating11,2 kN
Operating temperature min.-20 °C
Operating temperature max.200 °C
OTHER FEATURES
Mass1,21 kg
Recommended tightening torque for set screw3,7 N-m
