UCFE206-19T04CO - SNR

UCFE206-19T04CO

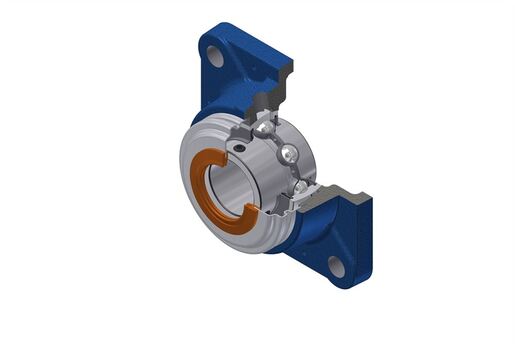

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC206-19G2T04 - SCOU206-19 - FE206N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

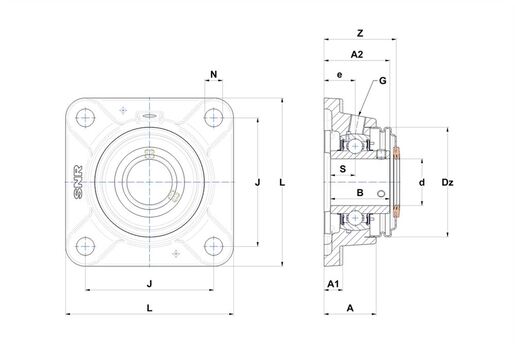

A - Housing height33,5 mm
A1 - Housing foot height / flange height12 mm
A2 - Total height from mounting surface42,2 mm
B - Width of Inner Ring38,1 mm
d - Shaft diameter30,163 mm
Dz - Outer diameter of cover70 mm
e - Distance mounting surface to bearing center20 mm
G - Grease fittingR1/8"
J - Mounting holes distance82,5 mm
L - Housing width / diameter108 mm
N - Mounting hole dimension11,5 mm
S - Distance front side/bearing centre15,9 mm
Z - Width over covers46,4 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating19,5 kN
C0 - Static load rating11,2 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass1,174 kg
Recommended tightening torque for set screw3,7 N-m
