UCFE209-26NT04 - SNR

UCFE209-26NT04

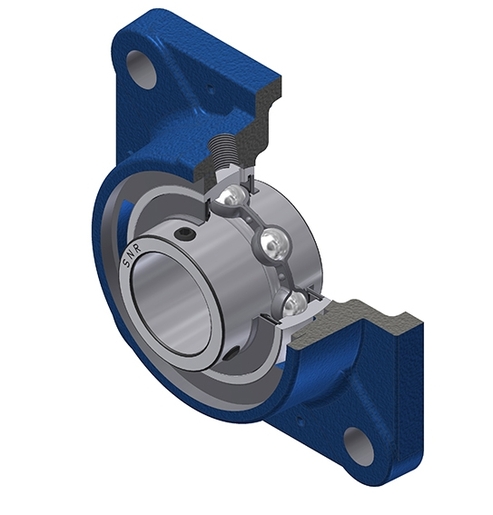

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC209-26G2T04 - FE209N
PLEASE LOGIN to add products to your basket
Contact us

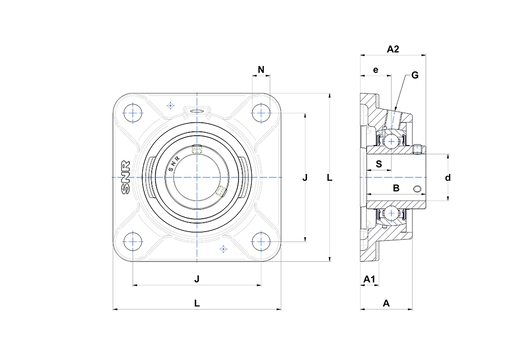

PRODUCT DEFINITION
BrandSNR
A - Housing height40 mm
A1 - Housing foot height / flange height13 mm
A2 - Total height from mounting surface54,2 mm
B - Width of Inner Ring49,2 mm
d - Shaft diameter41,275 mm
e - Distance mounting surface to bearing center24 mm
G - Grease fittingR1/8"
J - Mounting holes distance105 mm
L - Housing width / diameter137 mm
N - Mounting hole dimension14 mm
S - Distance front side/bearing centre19 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating31,85 kN
C0 - Static load rating20,8 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass2,29 kg
Recommended tightening torque for set screw8 N-m
