UCFE209N - SNR

UCFE209N

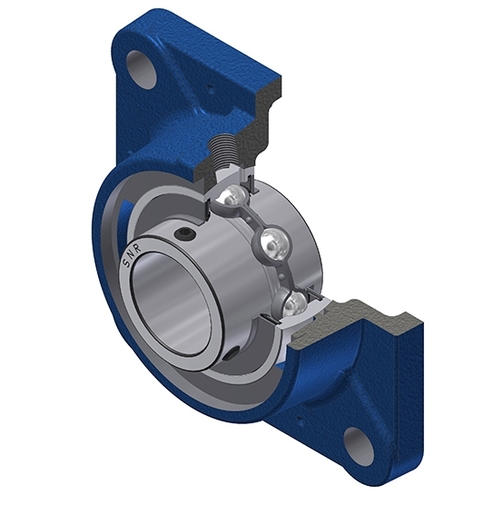

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC209G2 - FE209N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

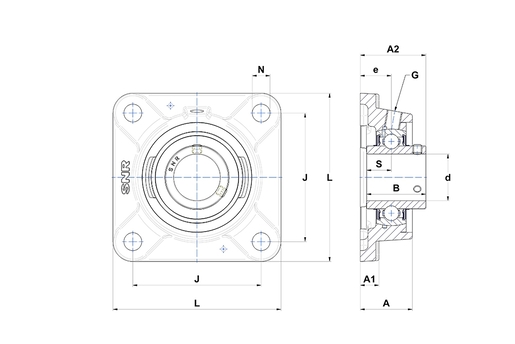

A - Housing height40 mm
A1 - Housing foot height / flange height13 mm
A2 - Total height from mounting surface54,2 mm
B - Width of Inner Ring49,2 mm
d - Shaft diameter45 mm
e - Distance mounting surface to bearing center24 mm
G - Grease fittingR1/8"
J - Mounting holes distance105 mm
L - Housing width / diameter137 mm
N - Mounting hole dimension14 mm
S - Distance front side/bearing centre19 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating31,85 kN
C0 - Static load rating20,8 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass2,19 kg
Recommended tightening torque for set screw11,5 N-m
