UCFE211-35N - SNR

UCFE211-35N

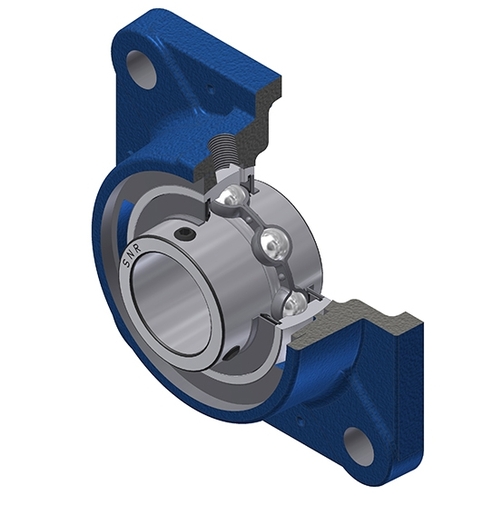

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC211-35G2 - FE211N
PLEASE LOGIN to add products to your basket
Contact us
Specs

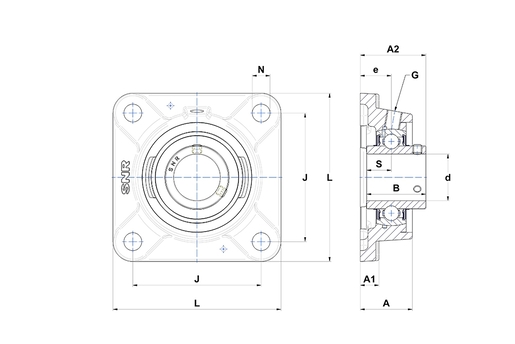

PRODUCT DIMENSIONS

Housing height (A) 48,5 mm
Housing foot height / flange height (A1) 15 mm
Total height (Housing + Insert) from mouting surface (A2) 64,4 mm
Width of IR (B) 55,6 mm
Shaft dia (d) 55,563 mm
Distance mounting surface - bearing center (e) 31 mm
Grease fitting (G) R1/8"
Mounting hole distance (J) 130 mm
Housing width / dia (L) 162 mm
Mounting hole dimension (N) 18 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 22,2 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 43,55 kN
Static load rating (C0) 29,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 3,61 kg
Recommended tightening torque for set screw [Nm] 16,8 N-m
