UCFE212NT04 - SNR

UCFE212NT04

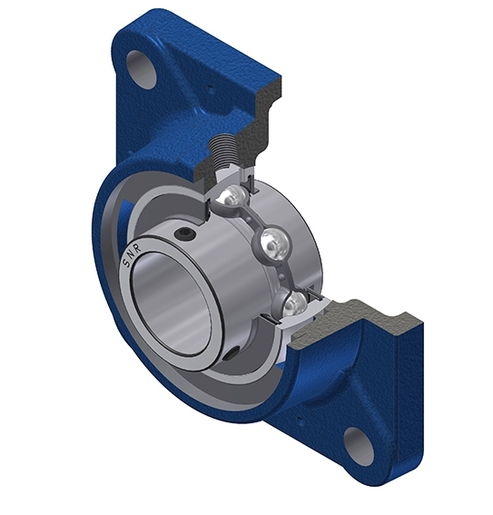

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC212G2T04 - FE212N
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR
A - Housing height53,5 mm
A1 - Housing foot height / flange height16 mm
A2 - Total height from mounting surface73,7 mm
B - Width of Inner Ring65,1 mm
d - Shaft diameter60 mm
e - Distance mounting surface to bearing center34 mm
G - Grease fittingR1/8"
J - Mounting holes distance143 mm
L - Housing width / diameter175 mm
N - Mounting hole dimension18 mm
S - Distance front side/bearing centre25,4 mm

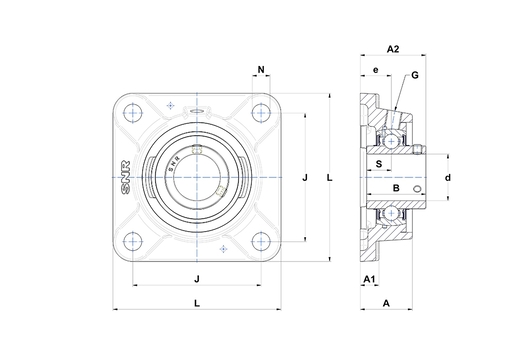

Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating52,5 kN
C0 - Static load rating32,8 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass4,82 kg
Recommended tightening torque for set screw22 N-m
