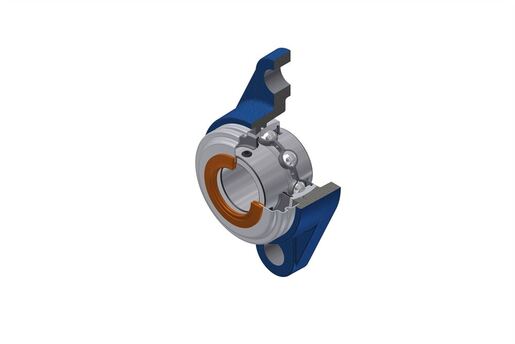

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications.

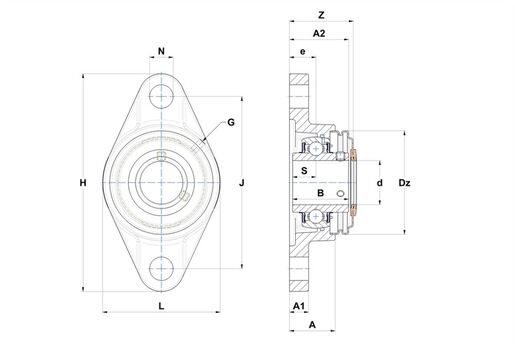

In the figure, flanged bearing units are presented with open cover. The product you have chosen is equipped with closed cover.
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
|Housing height (A)||25,5 mm|
|Housing foot height / flange height (A1)||11 mm|
|Total height (Housing + Insert) from mouting surface (A2)||33,3 mm|
|Width of IR (B)||31 mm|
|Shaft dia (d)||12 mm|
|Outer dia of cover (Dz)||54 mm|
|Distance mounting surface - bearing center (e)||15 mm|
|Grease fitting (G)||M6x1|
|Housing length, width or diameter (H)||113 mm|
|Mounting hole distance (J)||90 mm|
|Housing width / dia (L)||60 mm|
|Mounting hole dimension (N)||12 mm|
|Dist. cent. of raceway to face IR on side opp. lock. device (S)||12,7 mm|
|width over covers||37 mm|
|Dynamic load rating (C)||12,8 kN|
|Static load rating (C0)||6,65 kN|
|Operating temperature min.||-40 °C|
|Operating temperature max.||100 °C|
|Recommended tightening torque for set screw [Nm]||5,5 N-m|
