UCFL208-24NL3 - SNR

UCFL208-24NL3

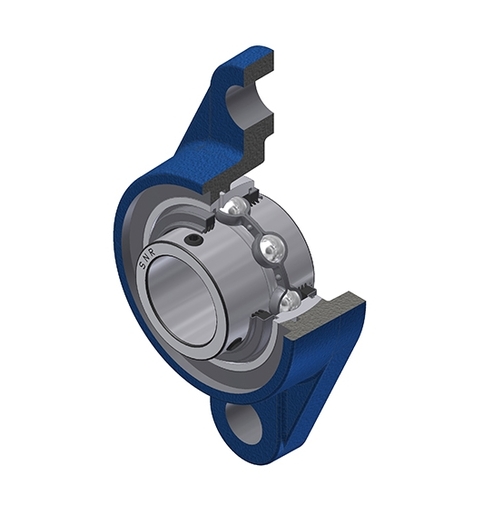

Grey cast housing, radial insert ball bearing with socket set screws,triple lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC208-24G2L3 - FL208N
PLEASE LOGIN to add products to your basket
Contact us
Specs

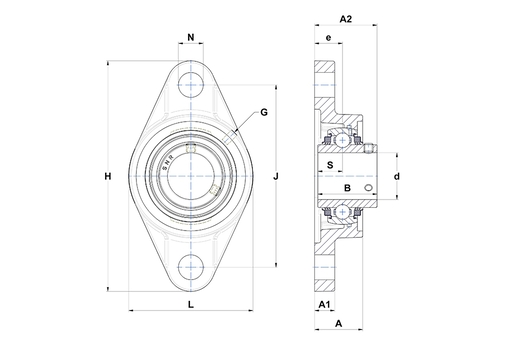

PRODUCT DIMENSIONS

Housing height (A) 36 mm
Housing foot height / flange height (A1) 14 mm
Total height (Housing + Insert) from mouting surface (A2) 51,2 mm
Width of IR (B) 49,2 mm
Shaft dia (d) 38,1 mm
Distance mounting surface - bearing center (e) 21 mm
Grease fitting (G) M6x1
Housing length, width or diameter (H) 175 mm
Mounting hole distance (J) 144 mm
Housing width / dia (L) 100 mm
Mounting hole dimension (N) 16 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 19 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 29,6 kN
Static load rating (C0) 18,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 1,5 kg
Recommended tightening torque for set screw [Nm] 8 N-m
