Bearing units

UCFL209T04 - SNR

UCFL209T04

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

This kit contains the following reference(s)

Documentation

Product information

PRODUCT DEFINITION
BrandSNR

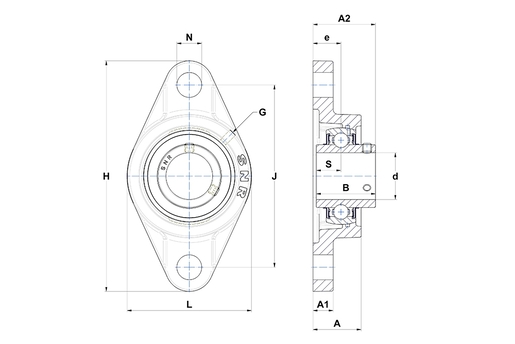

A - Housing height38 mm
A1 - Housing foot height / flange height16 mm
A2 - Total height from mounting surface52,2 mm
B - Width of Inner Ring49,2 mm
d - Shaft diameter45 mm
e - Distance mounting surface to bearing center22 mm
G - Grease fittingM6x1
H - Housing length, width or diameter188 mm
J - Mounting holes distance148 mm
L - Housing width / diameter108 mm
N - Mounting hole dimension19 mm
S - Distance front side/bearing centre19 mm
undefined
PRODUCT PERFORMANCE
C - Dynamic load rating31,85 kN
C0 - Static load rating20,8 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass1,85 kg
Recommended tightening torque for set screw11,5 N-m
