UCFLE210-31T20 - SNR

UCFLE210-31T20

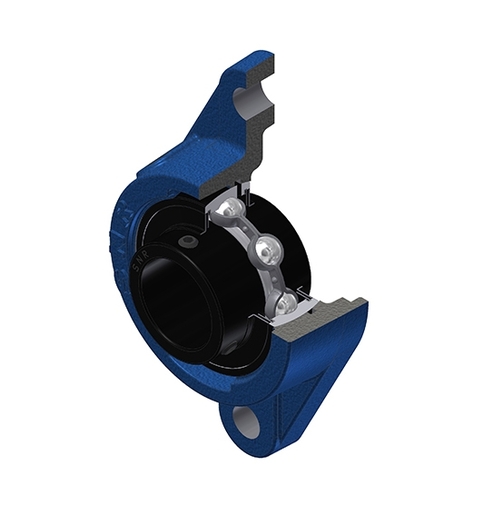

Grey cast housing, radial insert ball bearing with socket set screws,labyrinth seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC210-31G2T20 - FLE210
PLEASE LOGIN to add products to your basket
Contact us
Specs

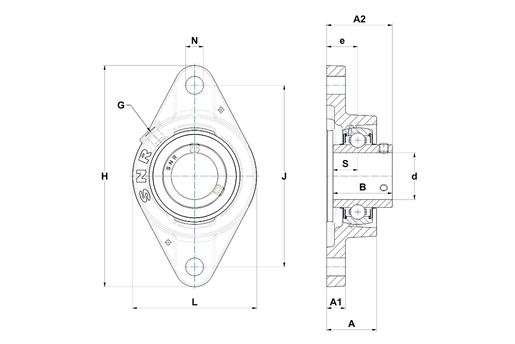

PRODUCT DIMENSIONS

Housing height (A) 41,6 mm
Housing foot height / flange height (A1) 13 mm
Total height (Housing + Insert) from mouting surface (A2) 60,6 mm
Width of IR (B) 51,6 mm
Shaft dia (d) 49,213 mm
Distance mounting surface - bearing center (e) 28 mm
Grease fitting (G) R1/8"
Housing length, width or diameter (H) 190 mm
Mounting hole distance (J) 157 mm
Housing width / dia (L) 116 mm
Mounting hole dimension (N) 18 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 19 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 35,1 kN
Static load rating (C0) 23,2 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 2,12 kg
Recommended tightening torque for set screw [Nm] 16,8 N-m
