UCPA205-14T20CO - SNR

UCPA205-14T20CO

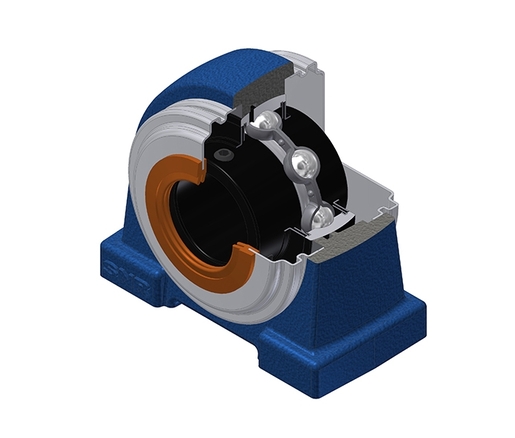

Grey cast housing, radial insert ball bearing with socket set screws,labyrinth seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - UC205-14G2T20 - PA205N - SCOU205-14
PLEASE LOGIN to add products to your basket
Contact us
Specs

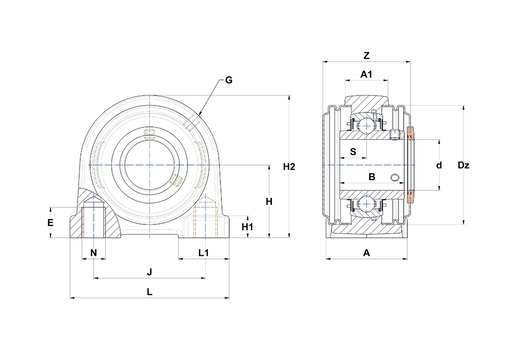

PRODUCT DIMENSIONS

Housing width (A) 38 mm
Housing top width (A1) 23 mm
Width of IR (B) 34 mm
Shaft dia (d) 22,225 mm
Outer dia of cover (Dz) 60 mm
Mounting hole thread depth (E) 15 mm
Grease fitting (G) M6x1
Distance mounting base to centerline spheric. seating diam. (H) 36,5 mm
Housing foot height (H1) 12 mm
Housing height (H2) 72 mm
Mounting hole distance (J) 56 mm
Housing length (L) 84 mm
Housing foot length (L1) 27 mm
Mounting hole dimension (N) M10
Dist. cent. of raceway to face IR on side opp. lock. device (S) 14,3 mm
width over covers 32,6 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 14 kN
Static load rating (C0) 7,88 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 0,744 kg
Recommended tightening torque for set screw [Nm] 3,7 N-m
