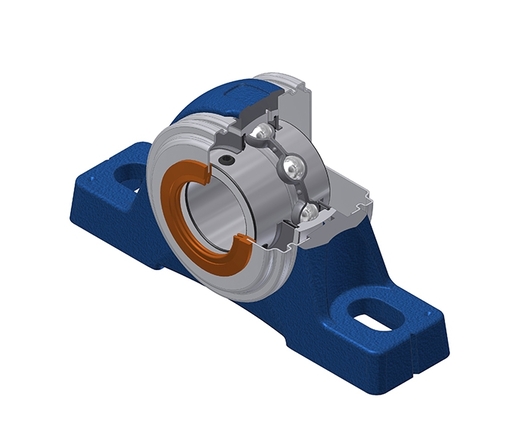

Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger, for low-temp. applications
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
Technical datasheet
Specs

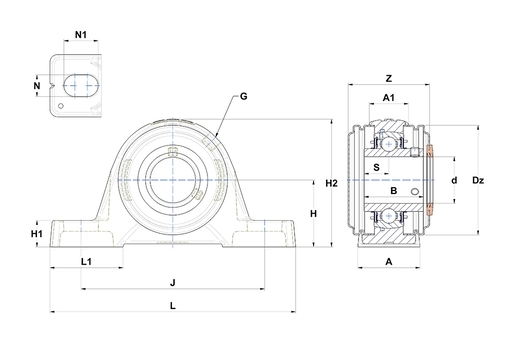

PRODUCT DIMENSIONS | |
|---|---|
| Housing width (A) | 60 mm |
| Housing top width (A1) | 42 mm |
| Width of IR (B) | 65,1 mm |
| Shaft dia (d) | 60,325 mm |
| Outer dia of cover (Dz) | 120 mm |
| Grease fitting (G) | R1/8" |
| Distance mounting base to centerline spheric. seating diam. (H) | 69,9 mm |
| Housing foot height (H1) | 25 mm |
| Housing height (H2) | 140 mm |
| Mounting hole distance (J) | 190 mm |
| Housing length (L) | 240 mm |
| Housing foot length (L1) | 71 mm |
| Mounting hole dimension (N) | 18 mm |
| Mounting hole length (N1) | 28 mm |
| Dist. cent. of raceway to face IR on side opp. lock. device (S) | 25,4 mm |
| width over covers | 92,3 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (C) | 52,5 kN |
| Static load rating (C0) | 32,8 kN |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 100 °C |
OTHER FEATURES | |
|---|---|
| Mass | 5,06 kg |
| Recommended tightening torque for set screw [Nm] | 16,8 N-m |
